Process Filters
Spun bonded Filter Cartridges

| Configuration | DOE / Code -7 |
| Type | Spun Bonded Cartridge |
| Sizes | • Dia : 2.5“/4.5/ 6”/8 • “Length : 10” to 60" |
| Filtration Rating | 1 to 50 micron |

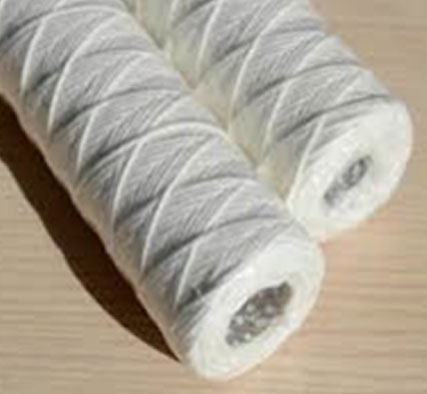

Wound Filter Cartridges

| Configuration | DOE |
| Type | Wound Cartridge |
| Sizes | • Dia : 2.5“/4.5/ 6”/8 • “Length : 10” to 60" |
| Filtration Rating | 1 to 50 Micron |

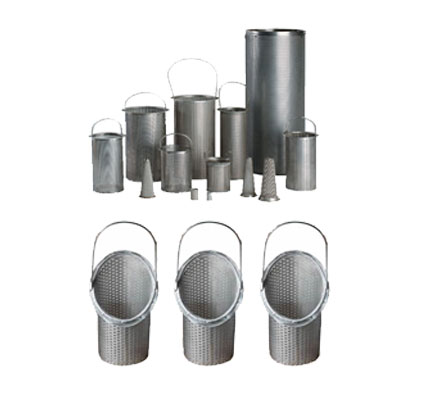

Basket Strainers

| Configuration | Flat Face / Oval Face |
| MOC | SS -316, SS-304 |
| Filter Media | Wire Mesh |
| Mesh Size | 40 Mesh / 60 Mesh |
| Supporting Media | Perforated Cylinder |
| Sizes | Custom Sizes |

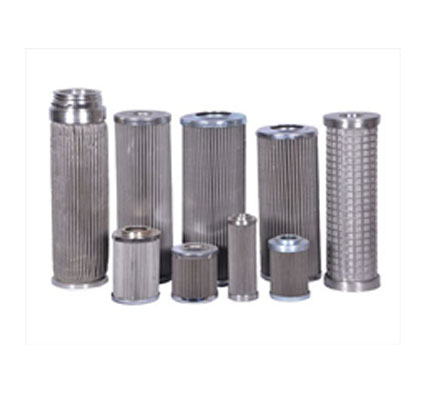

SS-316 Pleated Filter Cartridges

| Configuration | DOE / Threaded / Push Fit |
| Type | Wrap / Pleated Cartridge |
| Length | 10”, 20”, 30”, 40” |
| MOC | SS-316, SS-304 |
| Core/End Cap/Support Cage | SS-304/SS-316/SS-316 |
| Max. Opearating Temp. | Up to 250°C |
| Filtration Ratings | 1, 5, 10, 20, 40 Micron |
| Sealing | Buna, Silicon, Viton, EPDM |

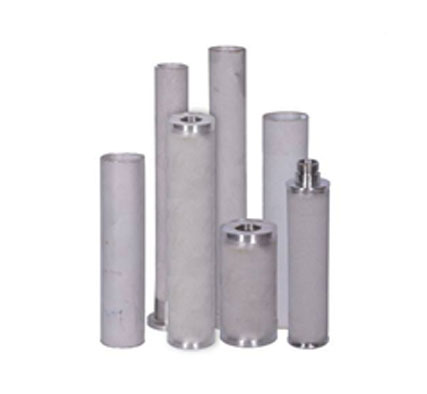

Sintered Filter Cartridges

| Configuration | DOE/SOE/Threaded/226 |
| Type | Powedred Sintered Cartridge |
| Length | 10”, 20”, 30”, 40” |
| MOC | SS-316, SS-316 L, SS-304 |
| Core / End cap | SS-304/SS-316/SS-316 L |
| Max. Opearating Temp. | Up to 250°C |
| Filtration Ratings | 1, 5, 10, 20, 40 Micron |
| Sealing | Buna, Silicon, Viton, EPDM |

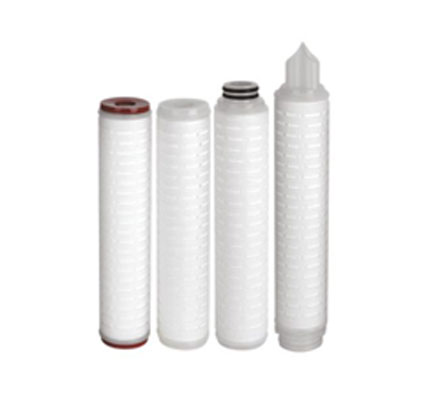

PP/PTFE/PES Filter Cartridges

| Configuration | DOE/SOE/226 O-ring |
| Type | Pleated Cartridge |
| Length | 10” to 70" |
| MOC | PP/PTFE/PES |
| Core / End cap | High Strength PP |
| Max. Opearating Temp. | Up to 250°C |
| Filtration Ratings | 0.22 /0.45/1/3/5/10/20/40 Micron |
| Sealing | Buna, Silicon, Viton, EPDM |

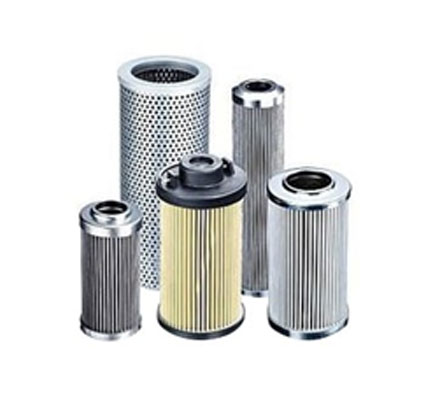

Hydraulic Lube Oil Filter

| Configuration | Customised |
| Filtration Media | Glass Fiber / SS wiremesh |
| Core / End cap | SS-304/SS-316 |
| Max. Opearating Temp. | Up to 250 Bar |
| Sealing | Buna, Silicon, Viton, EPDM |
Y type strainers

This product is designed for remove foreign matter from pipe lines and provides protection for pumps, meters, valves, and other similar mechanical equipment, which is called as Strainer. "Y" Type Strainers are named after their shape and normally used for course filtration. But with large filtration area can be used with fine mesh also. The Strainer improves the clearance in the medium, and prolongs the life of valves; protect expensive pumps, meters and other equipments. It is suitable for water, Air, Gas, petroleum, steam and other fluids.
Vent filters

Many biopharmaceutical applications require vent filters—hydrophobic sterilizing-grade filters used as air vents on processing tanks. The purpose of the tank vent filter is twofold: maintain near ambient pressure in the tank while ensuring sterility in the tank.

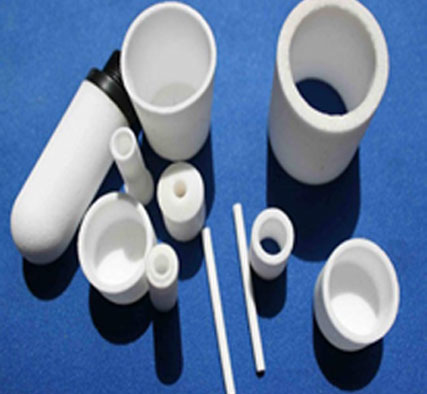

Porous Filter Candles (PP /PVDF/PC)

Porous Plastic Filter material of polypropylene, PTFE, HDPE, Cellulose Acetate and Polystyrene ranges from 5 to 250 microns. Form of Rods, hollow pipes, sheets and joined parts of porous with a non-porous plastic and can be moulded as per your drawing and dimensions.
